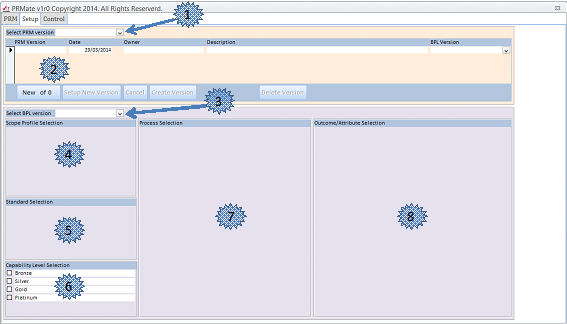

Setup Tab Overview

Setup Tab Overview

Previous Top Next

1

Select PRM Version

This is a dropdown list that lets you quickly select a PRM if you have multiple PRMs defined

2

PRM Version

This is the section that allows you to create, manage and delete PRMs, see also Setup Tab Creating a PRM.

NOTE: you can only create a PRM if you have loaded a valid BPL. This is done using the Load BPL button in the actions section of the Control tab, see also Loading a BPL.

3

Select BPL Version

This is a dropdown list that lets you select a BPL if you have multiple BPLs loaded.

4

Scope Profile Selection

This allows you to select or deselect one or more Scope Profiles, see also Selecting the Scope.

NOTE: This is only available once you have created a PRM, see Creating a PRM.

5

Standards Selection

This allows you to select or deselect one or more Standards, see also Selecting Standards.

NOTE: this is only available once you have created a PRM, see Creating a PRM.

6

Capability Level Selection

This allows you to select or deselect one or more capability levels, see Selecting Levels.

NOTE: this is only available once you have created a PRM, see Creating a PRM.

7

Process Section

This provides a list of all processes in the loaded BPL with those highlighed either through selection of a scope profile or manually selected, see also Selecting the Scope.

You can manually add additional processes, but you cannot deselect a process that has been automatically selected.

8

Outcome/Attribute Section

This provides a list of all outcomes and process attributes associated with the selected process, along with those highlighted through selection of standards or Levels or manually selected.

If you click on a process it will show you the associated outcomes and process attributes.

Outcomes and attributes will be automatically highlighed depending on the standards and levels selected, see also Selecting Standards and Selecting Level.

You can manually add additional outcomes and attributes, but you cannot deselect an outcome or attribute that has been automatically selected.
